AR-401

AmmoniaMethanolSyngasDimethyl EtherSynthetic FuelsRenewables

Nickel-based catalyst

Various shape options

Pre-converts hydrocarbon feeds

Extensive operating flexibility

Prereforming catalyst

AR-401 is a nickel catalyst on activated magnesium alumina spinel support. AR-401 is available in the following shapes:

Cylinder (4.5mm x 4.5mm)

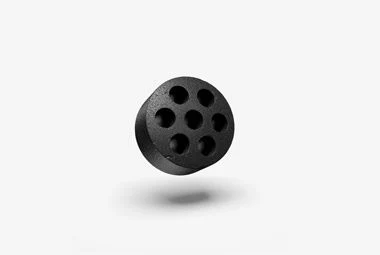

7 hole cylinder (11mm x 6mm, 2mm holes)

Application

AR-401 is installed in an adiabatic reactor prior to a tubular reformer or autothermal reformer and used for pre-conversion of hydrocarbon feeds ranging from natural gas to naphtha.

Extensive operating window

Due to the combination of the structure of the carrier material and the nickel crystallite size in the AR-401 catalyst, it has an extensive operating window. The high activity ensures effective conversion. It is suitable for low as well as high temperature prereforming and it can operate at very low steam carbon.

Close up

Brochure

Delivering optimal performance - Ammonia catalysts

Operational efficiency, improved asset utilization, longer cycles, and less downtime are essential requirements for the ammonia industry. Dive into this brochure to explore how Topsoe's catalysts help operators gain higher activities over a longer catalyst lifetime, less unplanned downtime, and lower energy costs.

Get full details

Brochure

The preferred choice for prereforming

The prereformer is a valuable tool for maximizing your production capacity and your energy efficiency. Topsoe’s AR-401 catalyst makes sure that you achieve the highest potential from your prereformer, by delivering superior activity as well as feedstock and operational flexibility

Get full details
