EQUIPMENT

Making optimal performance possible

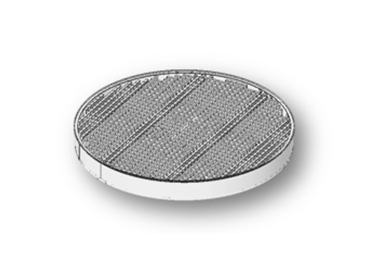

Redistribution tray

Our Redistribution Tray ensures uniform redistribution of the mixer effluents to the catalyst bed below.

The Redistribution Trays are individually optimized for each quench section to match the changes in flow and process conditions after each of the catalyst beds.

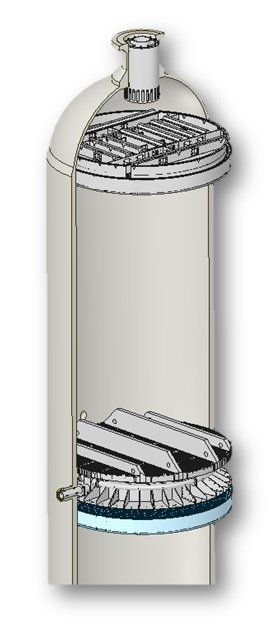

18_installation_point_of_the_redistribution_tray_

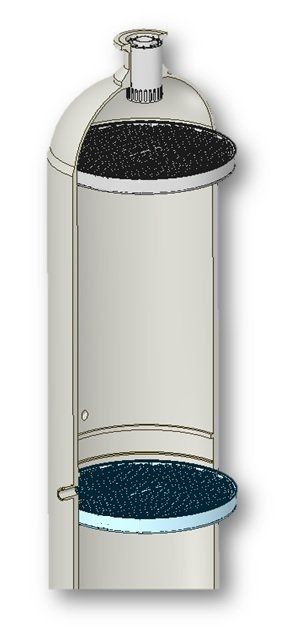

19_redistribution_tray_in_the_reactor



Installation point of the Redistribution Tray  Redistribution Tray in the reactor
