HTZ-51

AmmoniaMethanolSyngasDimethyl EtherSynthetic FuelsHydrogenRNGRenewables

State-of-the-art zinc oxide absorbent

Exceptional sulfur removal capacity

Maximum protection for catalysts

Hydrogenates organic sulfur leaks

Promoted zinc oxide absorbent

The diverse feedstocks in use today have made variations in gas composition and concentration commonplace, and technologies that protect downstream catalysts from poisoning are increasingly important.

The HTZ-51 is Topsoe’s state-of-the-art zinc oxide absorbent for feedstocks with low sulfur concentrations or for operation at low temperatures. It delivers unmatched sulfur removal and protection, even during unexpected leakages of organic sulfur.

Advantages

Exceptional sulfur capacity
Improved safety thanks to organic sulfur hydrogenation
Maximum protection and cost-effectiveness

Technical specs

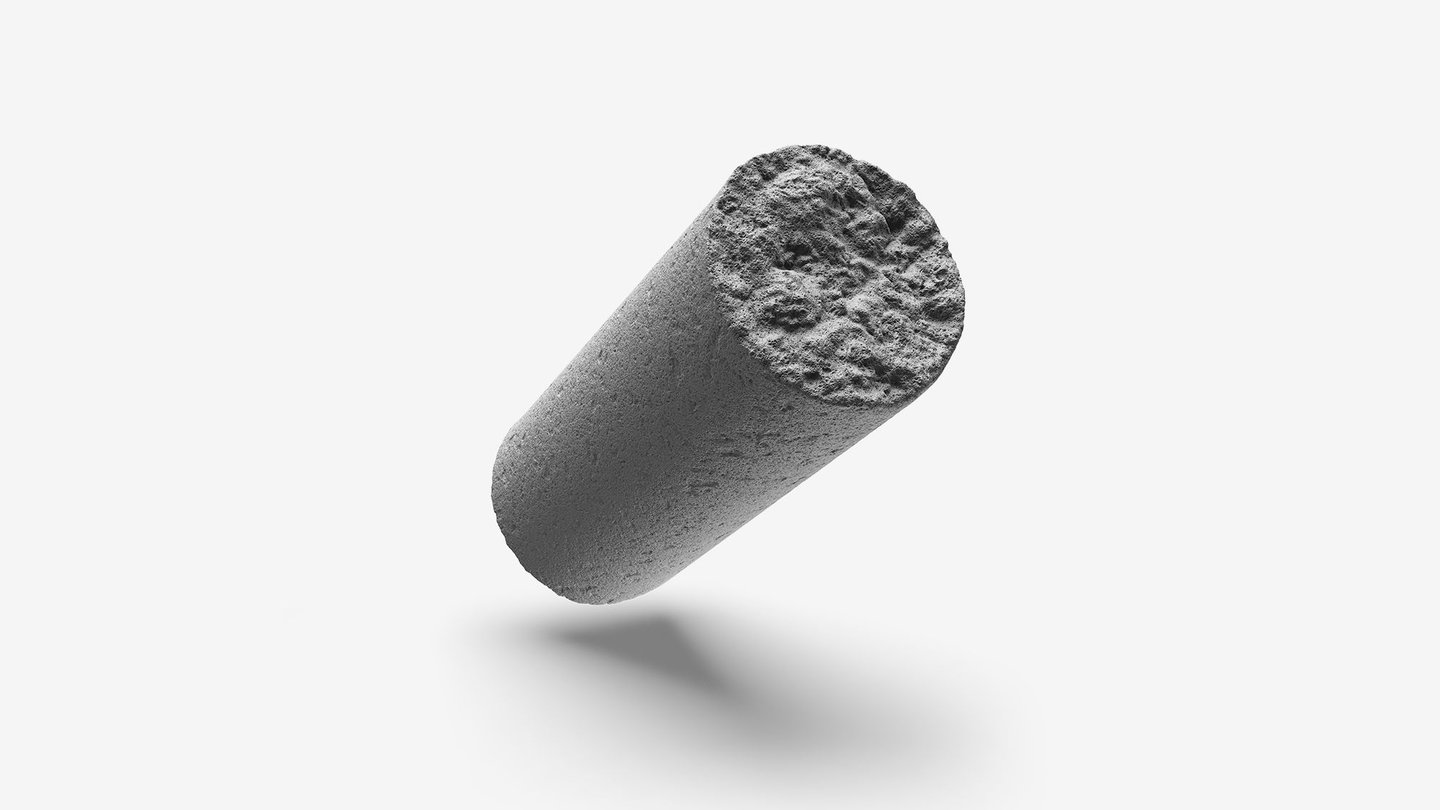

Size: 4 mm
Shape: Extrudate
ZnO: >97 wt%
Promoters: Balance
Typical temperature range: 200–400°C

Proprietary promoters

The HTZ-51 takes all the advantages of Topsoe’s proven HTZ-5 – like zinc oxide purity and an optimal pore structure – and then adds proprietary promoters that effectively catalyze the sulfur uptake from the feed gas.

Combined, the optimized pore structure and added promoters mean a short absorption front that allows for maximum utilization of the absorbent, a very high sulfur capacity and an extended lifetime.

Hydrogenate organic sulfur

In addition to improving sulfur uptake, the promoters added to the HTZ-51 enable hydrogenation, giving this premium absorbent the unique ability to convert organic sulfur to H2S in the event of an organic sulfur slip from upstream reactors.

Ultimate protection

The added promoters also improve chemisorption, which makes the HTZ-51 the undisputed best choice for maximum protection of downstream catalysts when operating with low sulfur feedstocks or under low-temperature conditions.

Close up
