SynCOR Ammonia™ - New process for grassroots plants

By rewriting the book on ammonia plant capacities, SynCOR Ammonia™ enables greater economies of scale and paves the way for new benchmarks, new financials and new opportunities – all using proven technologies.

SynCOR Ammonia™ is a technology break-through in the ammonia industry. Where all ammonia plants today rely on conventional two-step reforming based on tubular steam methane reforming and an air-fired secondary reformer, SynCOR Ammonia™ utilizes the unique TOPSOE™ SynCOR™ solution, a process based on oxygen-fired autothermal reforming.

SynCOR Ammonia™ introduces a previously unseen scaling factor for single-train ammonia plants, thanks to a steam-to-carbon ratio of just 0.6 – reducing steam throughput by 80%. The result can be double-digit reductions in the cost per ton of producing ammonia – with greater savings achieved the further you scale up.

By introducing new economies of scale into ammonia production, SynCOR Ammonia™ gives plant owners breakthrough options for profitable expansion and provides new investors with an opportunity to enter the market with a sharp competitive edge.

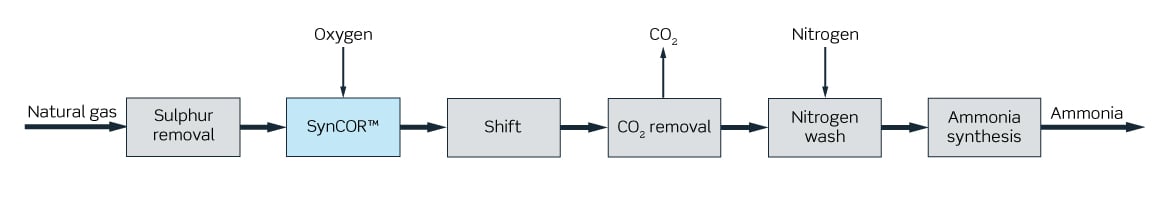

Simplified process layout



Most significant differences between conventional plant concepts and SynCOR Ammonia™


Conventional NH3 plant

SynCOR Ammonia™

Desulfurization section Standard Standard
S/C ratio 3.0 0.6
Reforming section Tubular steam reformer and air blown secondary reformer  Pre-reformer and oxygen blown SynCOR™
Shift section High-temperature shift followed by low temperature shift Two high-temperature shifts in series
CO2 removal section Standard Standard
Synthesis gas cleaning Methanation Nitrogen wash with purge and nitrogen addition
Ammonia synthesis Ammonia synthesis loop with purge Inert free synthesis loop with no purge
Purge gas treatment Ammonia wash followed by hydrogen recovery No treatment required
Relative energy consumption 100 97
Relative make-up water consumption 100 40-50
MAX referenced capacity, single train NH3/other industries 3,500 MTPD / - 4,000 MTPD*)/>6,000 MTPD

* An equivalent production of 4,000 MTPD
