    Wet gas Sulfuric Acid (WSA) technology

    Wet gas Sulfuric Acid (WSA) technology

    Checkmark

    Produce commercial-grade sulfuric acid with 98% concentration.

    Checkmark

    Up to 99.9% sulfur removal efficiencies.

    Checkmark

    High energy recovery and low CO₂ emissions.

    Checkmark

    40 years of commercial success in numerous operations worldwide.

    Turn sulfurous emissions into new revenue streams

    Open the door to new commercial opportunities and revenue streams with our well-proven WSA (Wet gas Sulfuric Acid) technology. By turning sulfurous gasses into commercial-grade sulfuric acid (typically 98% concentration), you can create new revenue streams while ensuring regulatory compliance.

    Proven performance and flexibility

    With over 40 years of commercial success worldwide, the WSA technology offers exceptional flexibility and proven performance. You can achieve more than 99.9% sulfur removal efficiency through its removal of a wide range of sulfurous compounds from off-gases and waste streams in a string of different applications. This helps keep your emissions compliant and your operations environmentally responsible.

    Increased energy efficiency and reduce emissions

    The WSA process recovers waste heat from H2S conversion, generating high-pressure, superheated steam. This steam can be reused within your site to reduce the use of fossil fuel-powered boilers. This will help increase energy efficiency and lower CO2 emissions.

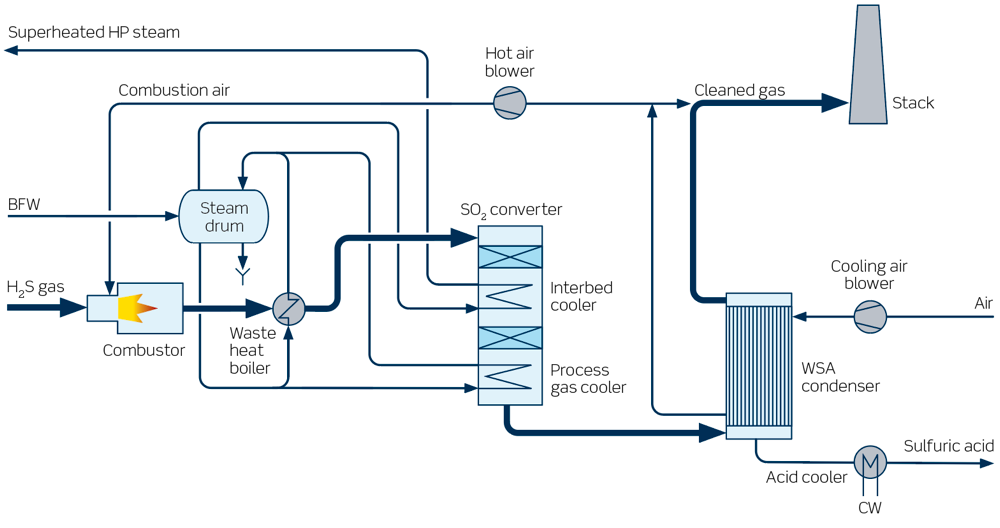

    How it works

    1. SO2 production: The process begins with the production of an SO2 gas at around 400°C. If the feed already contains SO2, preheating is all that is required. Other sulfurous feeds can be oxidized to SO2 by combustion followed by cooling in a waste heat boiler. This step generates steam that can be used in other areas of the site.

    2. Catalytic conversion of SO2 to SO3: The SO2 is then catalytically converted to SO3 in one or more catalyst beds. The thermal energy given off by this reaction is recovered between the catalyst beds. After the final conversion step, the gas is cooled, and the SO3 reacts with water vapor to form gas-phase sulfuric acid.

    3. Condensation and product recovery: The process gas is cooled in a WSA condenser using a counter-current flow of air. Clean gas leaves from the top of this condenser and is sent to the stack. Condensed commercial-grade sulfuric acid exits from the bottom of the condenser, where it is cooled and sent to storage. The hot air generated in the WSA condenser can be reused as preheated combustion air in the combustor or for preheating process gas or boiler feed water to ensure maximum energy efficiency.

    Comparing the Claus and WSA processes: Benefits of making the switch

    Refineries transitioning from the modified Claus process to WSA technology can reduce their overall CO2 emissions by up to 7% by capitalizing on the energy output from the WSA process.

    Learn more here: How to boost refinery decarbonization with the WSA™ process



    1000xN License_WSA_diagram

    Definition

    Catalysts

    Catalysts can accelerate chemical reactions, control selectivity, and reduce energy requirements. Their ability to optimize process efficiency and product quality make them indispensable in industrial processes.

    Definition

    Outputs

    The output is the result or end product you're looking to get out of your refinery or chemical process. The output helps determine which technologies and catalysts you need.
