Catalyst bed fouling reduces the void volume in the reactor, leading to pressure drop build-up, channeling, and hot spots. These issues negatively affect the catalyst performance and, thus, the cycle length of the unit.
From our proven grading strategies to our shape-optimized toppings, particulate traps and high void fraction ring-shaped catalysts, Topsoe offers a wide range of solutions for combating reactor bed fouling. Our solutions are based on unmatched industry experience and advanced laboratory modelling and are individually tailored to your needs.
Catalysts
Catalysts
The performance catalysts we supply for this application are listed below.
CatalystsTK-10
TK-10 is an inert hold-down catalyst applicable as topping layer in catalytic reactors instead of spherical material. It is shape-optimized and provides a high void fraction, as well as being an important part of grading in composite catalyst fillings. Application Catalyst grading systems.- Catalysts

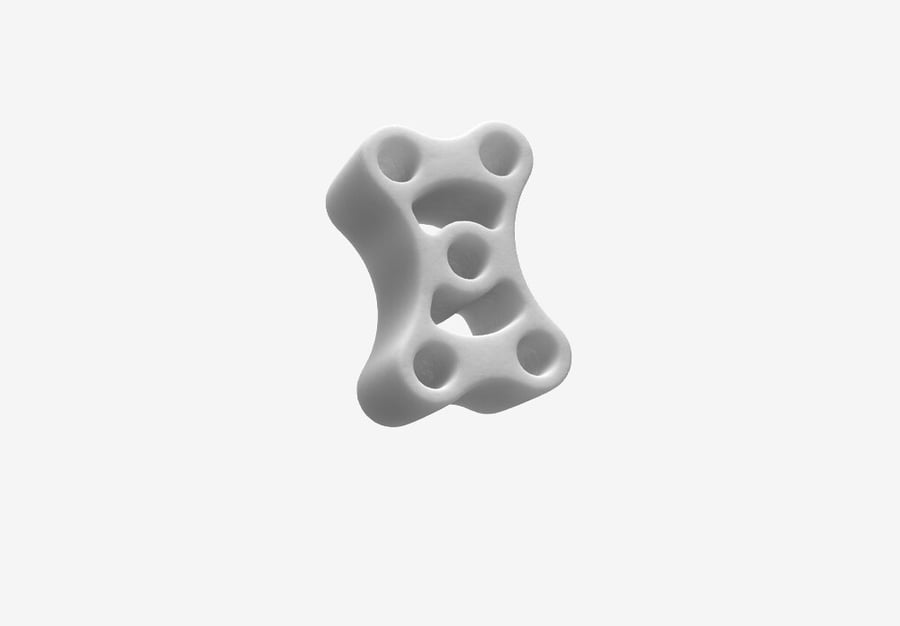

TK-15
TK-15 is a shape-optimized inert providing high void fraction. TK-15 is used for topping off catalytic reactors instead of spherical material. It is specifically designed for units experiencing high gas rates or carry-over of coke spalled from the heater or heat exchange train. Application Catalyst... - Catalysts

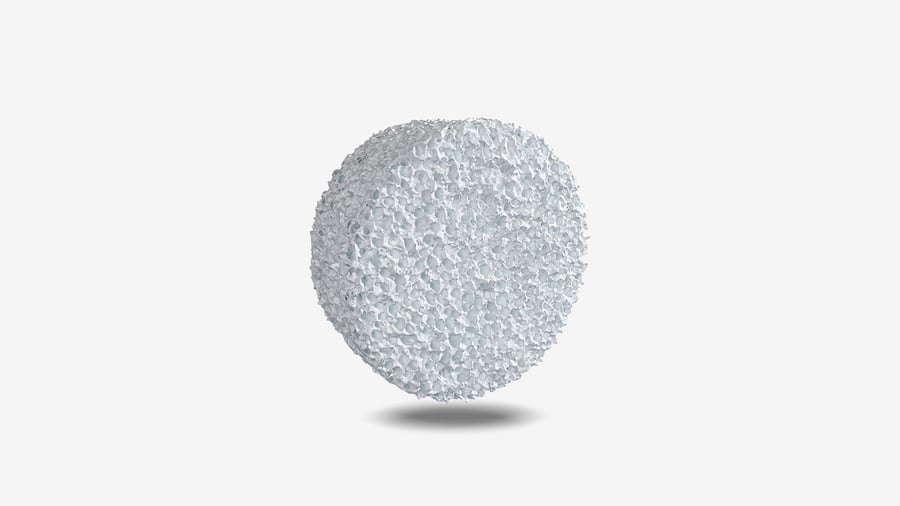

TK-18 TopTrap™

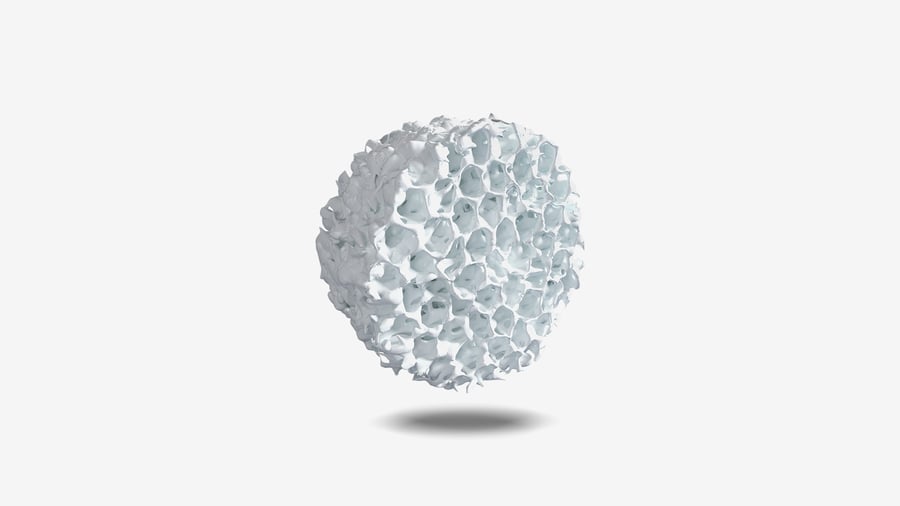

Particulate trap TK-18 TopTrap™ is an inert, reticulated, macro-porous material designed to pick up particulates, scales, and other contaminants. The combination of the very high-effective, internal porosity and the external void space creates more than 90% effective void space. The TK-18 TopTrap™... - Catalysts

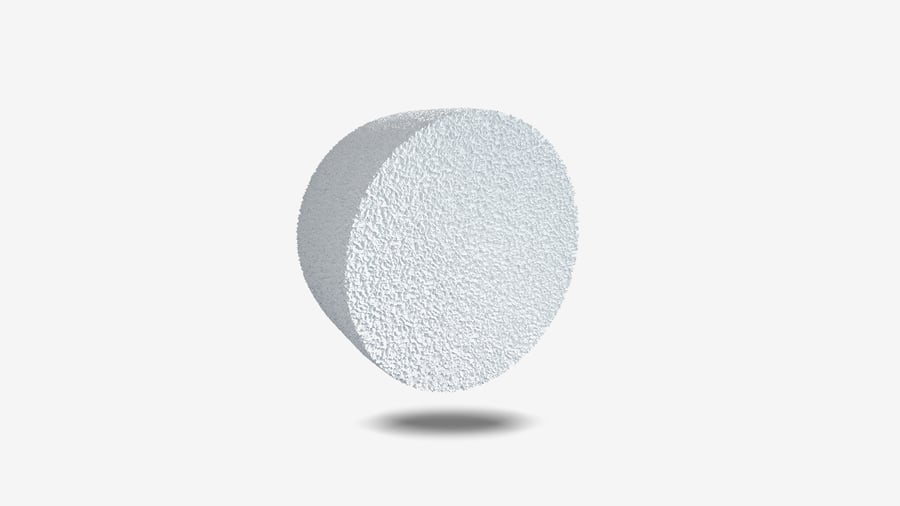

TK-22 TopTrap™
Particulate trap TK-22 TopTrap™ is an inert, reticulated, macro-porous material designed to pick up particulates, scales, and other contaminants. The combination of the very high-effective, internal porosity and the external void space creates more than 90% effective void space. The TK-22 TopTrap™... - Catalysts
TK-24 TopTrap™
Particulate trap TK-24 TopTrap™ is an inert, reticulated, macro-porous material designed to pick up particulates, scales, and other contaminants. The combination of the very high-effective, internal porosity and the external void space creates more than 90% effective void space. The TK-24 TopTrap™... - Catalysts

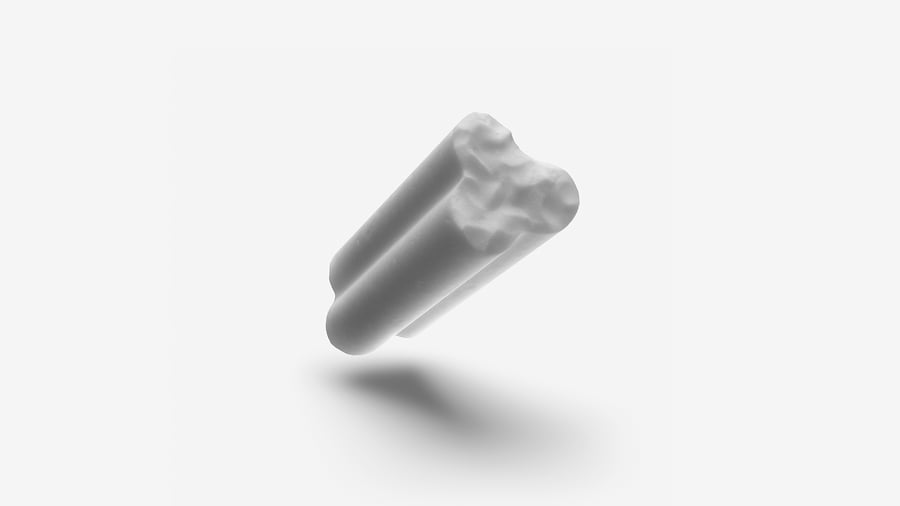

TK-26 TopTrap™
Particulate trap TK-26 TopTrap™ is an inert macro-porous material designed to pick up iron scale and other contaminants. TK-26 TopTrap™ is a shape-optimized multiple-lobe extrudate with three central holes providing a high external void fraction. TK-26 TopTrap™ should be loaded below our high-void... - Catalysts
TK-30
TK-30 is a high purity alumina catalyst shaped as rings or extrudates. As a separate layer, it functions as void grading material in catalytic reactors, but it can also be used as diluent for controlling catalyst activity in any hydroprocessing application. Application Catalyst grading systems. - Catalysts
TK-41
TK-41 has very high affinity for arsenic trapping in VGO and gas oil services, where it is also able to trap Ni/V/Si. TK-41 is available in ring shape and has been developed as a first-stage guard catalyst for use in grading systems where arsenic pick-up is needed. Application Integral part of the... - Catalysts
TK-447 SiliconTrap™
Replacing TK-437, the new generation TK-447 SiliconTrap™ is a very high surface area catalyst for silicon pick-up and desulfurization of coker naphtha feedstock. This catalyst has a low hydrodesulfurization (HDS) activity and should be used in combination with TK-441 SiliconTrap™ as a guard... - Catalysts
TK-453 SiliconTrap™
TK-453 SiliconTrap™ is a NiMo catalyst with very high rates for removal of metals (Ni, V, Fe) and silicon, and it is an excellent guard in hydrotreaters that process heavy feeds. It exhibits moderate hydrodesulfurization (HDS) and hydrodenitrogenation (HDN) activities. The pore size distribution... - Catalysts
TK-455 MultiTrap™
Hydroprocessing catalyst TK-455 MultiTrap™ is a large pore, high-porosity catalyst for trapping silicon and phosphorus in gasoil and vacuum gas oil (VGO) feeds. TK-455 MultiTrap™ is applied in the top bed of hydrotreaters as part of the catalyst grading system. The unique pore system... - Catalysts
TK-709
TK-709 is a high-surface area, low-activity catalyst with high hydrodemetallization (HDM) activity and metal storage capacity. It is typically used in various grading applications for all types of feeds, particularly where iron is encountered. It is especially suitable for olefin containing feeds,... - Catalysts
TK-711
TK-711 is a catalyst with high hydrodemetallization (HDM) activity, metal storage capacity and moderate hydrodesulfurization (HDS) activity. It is used in various grading applications for all types of feeds. - Catalysts
TK-831
TK-831 provides high hydrodemetallization (HDM) activity, metal storage capacity and moderate hydrodesulfurization (HDS) and hydrodenitrogenation (HDN) activity. It is used in various grading applications for all types of feeds.
Equipment
Equipment
The proprietary equipment we supply for this application are listed below. Also see our reactor internals overview for more.
- Equipment

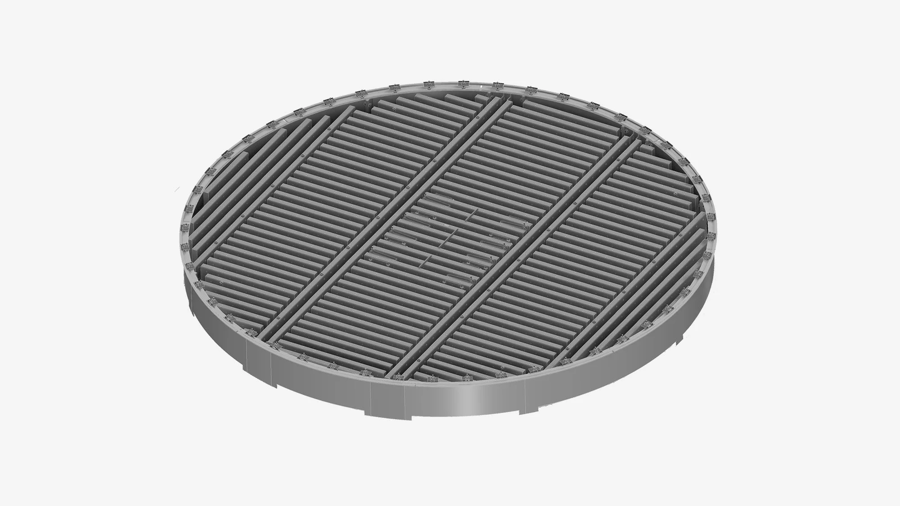

Distributor Tray
Our Vapor Lift Distributor Tray (VLT) ensures uniform distribution of liquid and gas over the entire cross section area of the catalyst bed. - Equipment

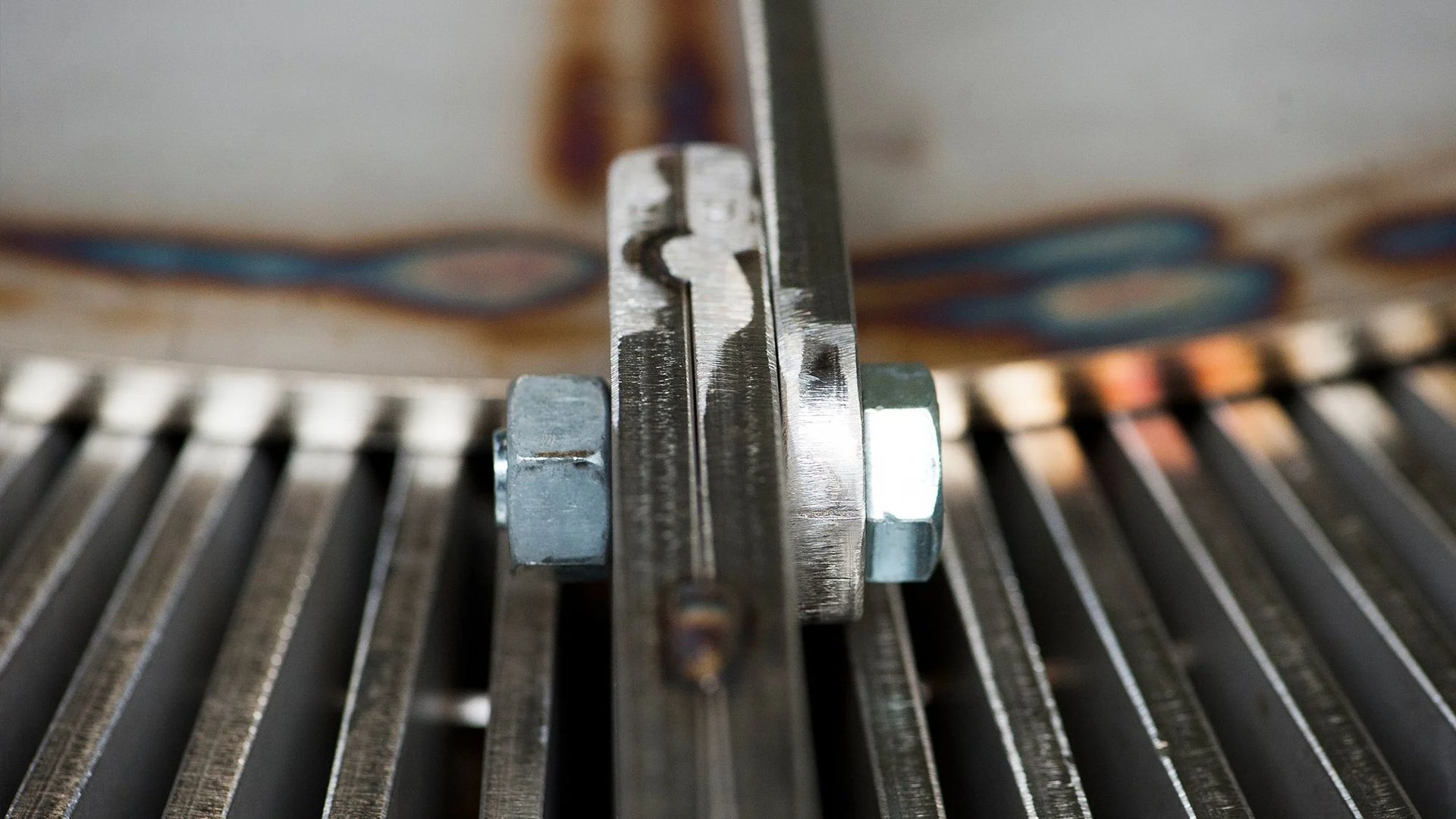

Scale Catcher
Our Scale Catching technology is a proven and economically feasible solution to delay pressure drop development and significantly increase unit utilization.
Services
Services
The services we supply for this application are listed below.
- Services
Catalyst Loading
All plants – even those with lots of turnaround experience – can run into trouble during loading. When a problem occurs, it can lead to longer turnarounds and, in the worst case, result in an underperforming catalyst. That makes proper loading an important step in profitable plant operation. Topsoe... - Services
General Technical Service
Optimal interaction between catalyst and technology is crucial if your plant is to perform at its best. Topsoe’s General Technical Service employs the full weight of our knowledge and experience to advise, inform and guide you towards improvement. All General Technical Service is provided as in-... - Services
Plant Assessment / Optimization
Refineries and chemical plants are complex and vulnerable to changes over time. These changes can degrade performance and impact negatively on day-to-day operations and, ultimately, your bottom line. Whether you choose a catalyst performance evaluation or full-scale process and catalyst... - Services
Sampling & Analysis
As a general rule, the more you know about a plant or unit’s operating conditions, the better you’ll be able to keep performance, cost-efficiency and profits high. Our Sampling & Analysis service is your direct route to the detailed insight it takes to make better decisions. During start-ups... - Services
Start-up & Reduction / Activation
Starting up your plant or unit is a complicated and time-consuming procedure that involves monitoring numerous parameters and ensuring the right start-up sequencing. If not performed correctly, it can result in delays or even damage to your catalysts, unit or plant. Our Start-up & Reduction/... - Services
Troubleshooting
Catalysts and processes normally operate smoothly, yet suboptimal performance can occur from time to time. Since most issues have multiple root causes – usually originating in external factors – the process of solving an issue can be difficult and complex. Our Troubleshooting service draws on the...
Project development
Project development
- Project development services
Facilitating Investments
Benefit from the extensive experience of our project finance teams. - Project development services
Project development
Holistic and integrated approach from idea to financial close.
