Crust formation at the top of a catalyst bed can occur when a reactor – especially one used to process feedstocks containing olefins and oxygenates (coker products, fluid catalytic cracking (FCC) products and renewable feeds) – has been packed with catalyst having too high activity. When a crust does form, it can lead to excessive pressure drop, flow maldistribution, and difficulties during catalyst unloading.
Topsoe’s catalyst grading solutions prevent crust formation by gradually increasing the catalytic activity from low in the inert topping to higher, the further down the bed you go. The result is longer cycles, optimized reactor performance, and more profitable operation.
Catalysts
Catalysts
The performance catalysts we supply for this application are listed below.
CatalystsTK-10
TK-10 is an inert hold-down catalyst applicable as topping layer in catalytic reactors instead of spherical material. It is shape-optimized and provides a high void fraction, as well as being an important part of grading in composite catalyst fillings. Application Catalyst grading systems.- Catalysts
TK-15
TK-15 is a shape-optimized inert providing high void fraction. TK-15 is used for topping off catalytic reactors instead of spherical material. It is specifically designed for units experiencing high gas rates or carry-over of coke spalled from the heater or heat exchange train. Application Catalyst... - Catalysts
TK-18 TopTrap™
Particulate trap TK-18 TopTrap™ is an inert, reticulated, macro-porous material designed to pick up particulates, scales, and other contaminants. The combination of the very high-effective, internal porosity and the external void space creates more than 90% effective void space. The TK-18 TopTrap™... - Catalysts
TK-22 TopTrap™
Particulate trap TK-22 TopTrap™ is an inert, reticulated, macro-porous material designed to pick up particulates, scales, and other contaminants. The combination of the very high-effective, internal porosity and the external void space creates more than 90% effective void space. The TK-22 TopTrap™... - Catalysts
TK-24 TopTrap™
Particulate trap TK-24 TopTrap™ is an inert, reticulated, macro-porous material designed to pick up particulates, scales, and other contaminants. The combination of the very high-effective, internal porosity and the external void space creates more than 90% effective void space. The TK-24 TopTrap™... - Catalysts
TK-26 TopTrap™
Particulate trap TK-26 TopTrap™ is an inert macro-porous material designed to pick up iron scale and other contaminants. TK-26 TopTrap™ is a shape-optimized multiple-lobe extrudate with three central holes providing a high external void fraction. TK-26 TopTrap™ should be loaded below our high-void... - Catalysts
TK-30
TK-30 is a high purity alumina catalyst shaped as rings or extrudates. As a separate layer, it functions as void grading material in catalytic reactors, but it can also be used as diluent for controlling catalyst activity in any hydroprocessing application. Application Catalyst grading systems. - Catalysts
TK-447 SiliconTrap™
Replacing TK-437, the new generation TK-447 SiliconTrap™ is a very high surface area catalyst for silicon pick-up and desulfurization of coker naphtha feedstock. This catalyst has a low hydrodesulfurization (HDS) activity and should be used in combination with TK-441 SiliconTrap™ as a guard... - Catalysts
TK-709
TK-709 is a high-surface area, low-activity catalyst with high hydrodemetallization (HDM) activity and metal storage capacity. It is typically used in various grading applications for all types of feeds, particularly where iron is encountered. It is especially suitable for olefin containing feeds,... - Catalysts
TK-711
TK-711 is a catalyst with high hydrodemetallization (HDM) activity, metal storage capacity and moderate hydrodesulfurization (HDS) activity. It is used in various grading applications for all types of feeds. - Catalysts
TK-831
TK-831 provides high hydrodemetallization (HDM) activity, metal storage capacity and moderate hydrodesulfurization (HDS) and hydrodenitrogenation (HDN) activity. It is used in various grading applications for all types of feeds.
Equipment
Equipment
The proprietary equipment we supply for this application are listed below. Also see our reactor internals overview for more.
- Equipment
Distributor Tray

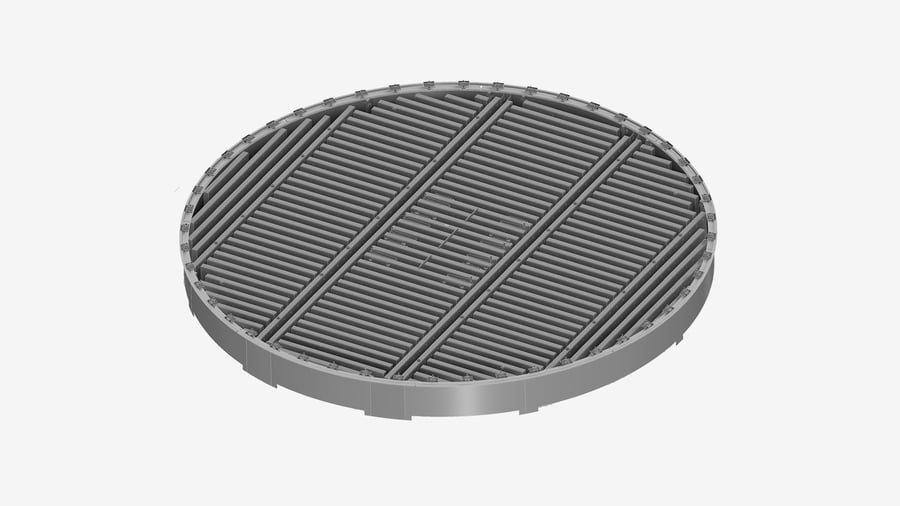

Our Vapor Lift Distributor Tray (VLT) ensures uniform distribution of liquid and gas over the entire cross section area of the catalyst bed. - Equipment

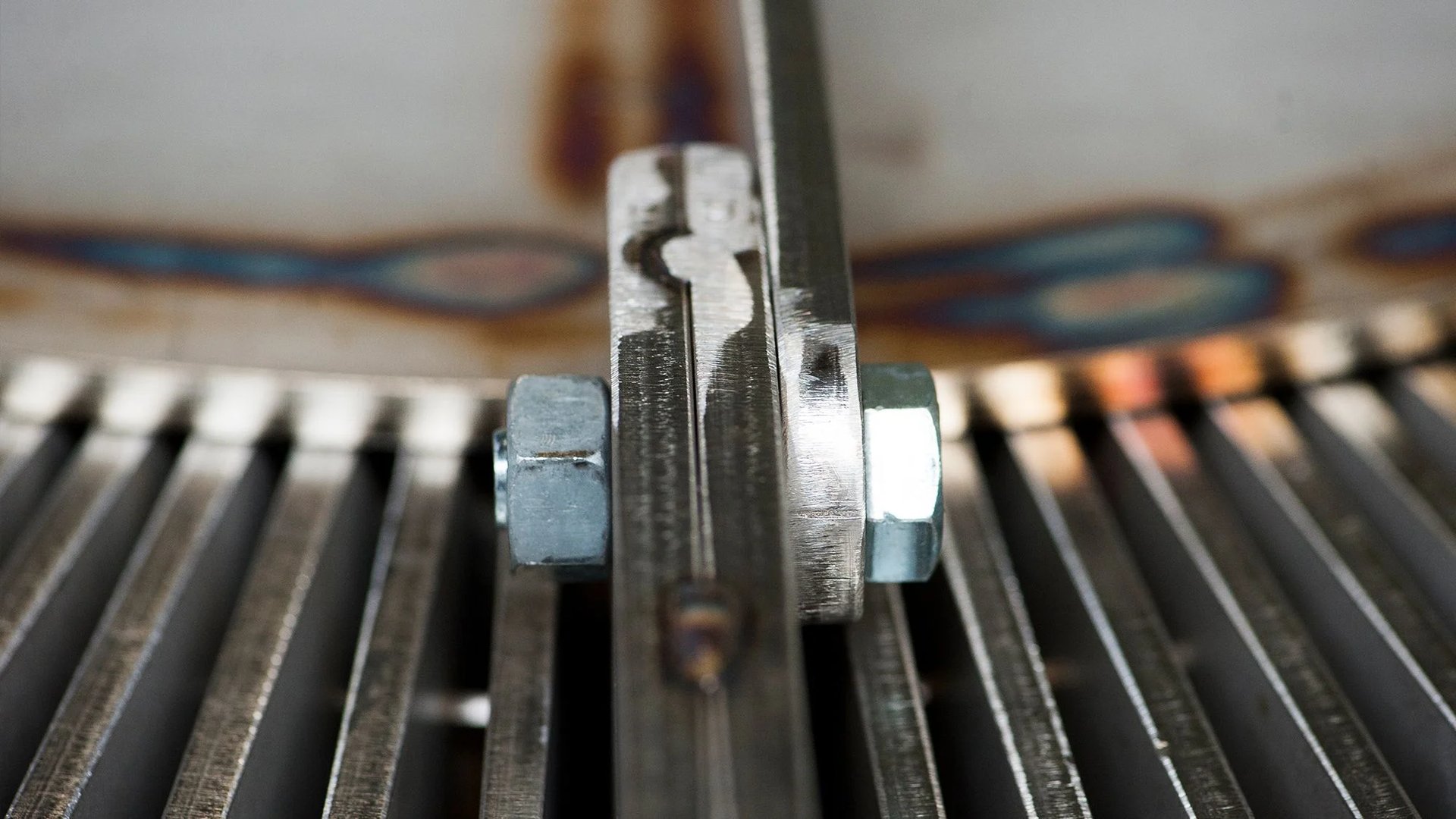

Scale Catcher
