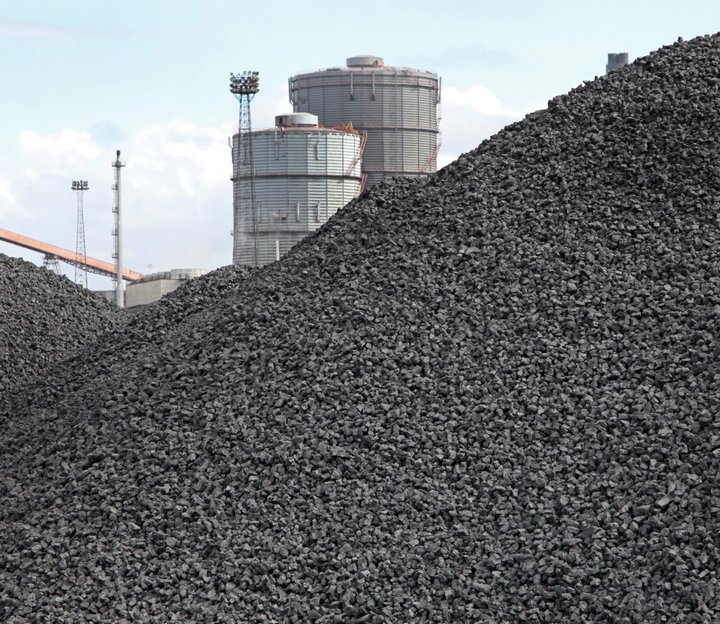

A low-value by-product that is difficult and costly to dispose of, coal tar is a headache for most coke oven sites.
Topsoe’s coal tar processing technology offers the possibility of on-site tar upgrading from coke ovens and coal gasifiers to high-quality, low-sulfur diesel, naphtha, and lube oil base. The process can accommodate the wide property variations observed for coal tar due to the origin of the coal or the specific coking process and ensure a flexible and profitable solution - fit for purpose.
Topsoe’s coal tar processing technology is an integrated solution, encompassing reactor internals, grading material, catalyst, process design and detailed reactor engineering. With this extensive product portfolio, you only have one point of contact which saves time and ensures a truly integrated solution.
Equipment
Equipment
The proprietary equipment we supply for this application are listed below. Also see our reactor internals overview for more.
EquipmentCatalyst Support
Our Catalyst Support is designed to support the combined weight of the catalyst, support material and oil.- Equipment
Distributor Tray
Our Vapor Lift Distributor Tray (VLT) ensures uniform distribution of liquid and gas over the entire cross section area of the catalyst bed. - Equipment
Inlet Diffuser
Our Inlet Diffusers are optimized and customized for every unit, taking into account all your reactor flow parameters and reactor geometry. - Equipment
Outlet Collector
Our Outlet Collector ensures even flow distribution in the bottom bed to maximize catalyst utilization and prevents bed migration to downstream piping and equipment. - Equipment
Quench Mixer
Our Quench Mixer ensures efficient mixing of catalyst bed effluents from both above and from the cold quench stream. - Equipment
Redistribution Tray
Our Redistribution Tray ensures uniform redistribution of the mixer effluents to the catalyst bed below. - Equipment
Scale Catcher
Our Scale Catching technology is a proven and economically feasible solution to delay pressure drop development and significantly increase unit utilization.
