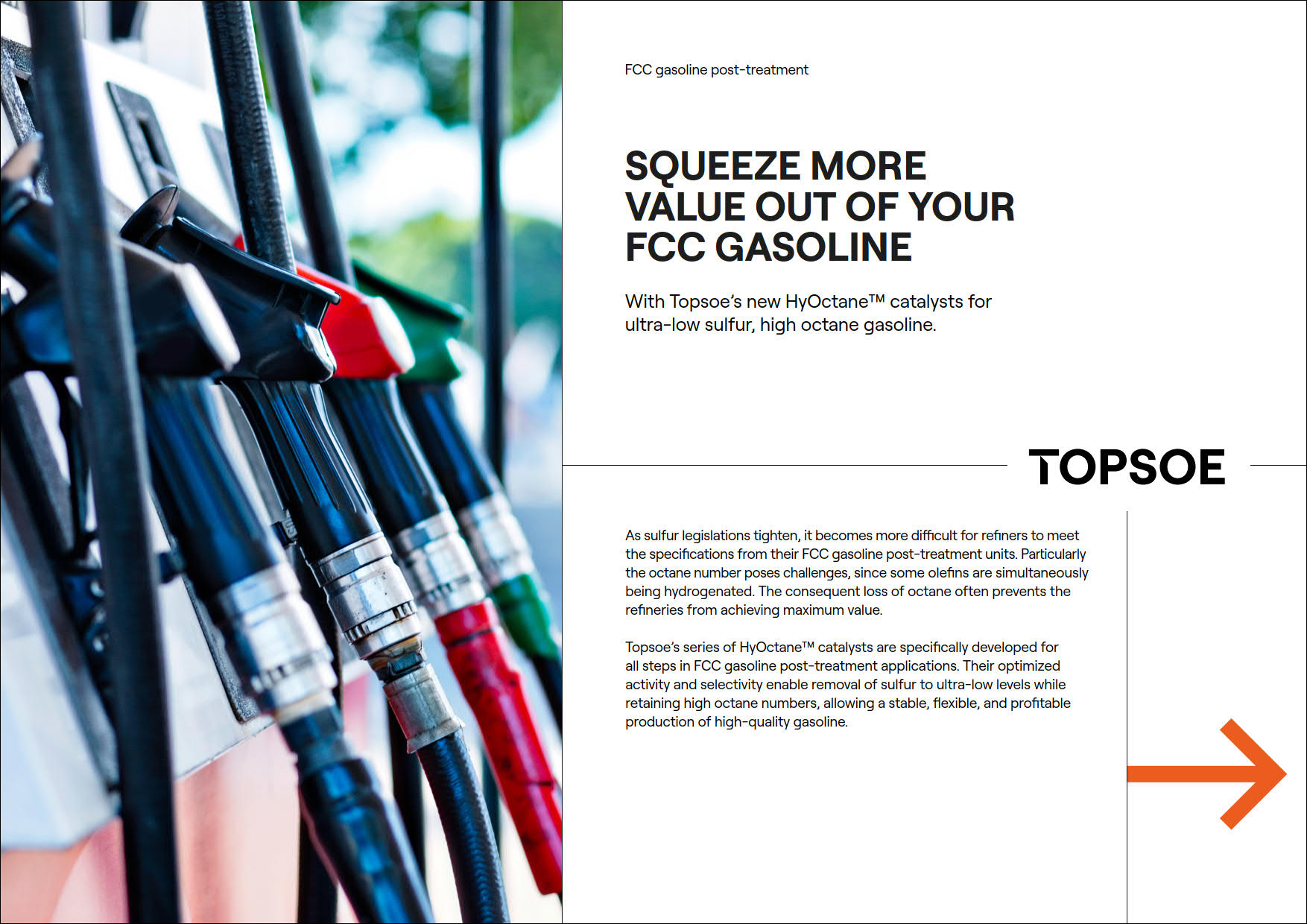

As sulfur legislations tighten, it becomes more difficult for refiners to meet the specifications from their FCC gasoline post-treatment units. Particularly the octane number poses challenges, since some olefins are simultaneously being hydrogenated. The consequent loss of octane often prevents the refineries from achieving maximum value.
Topsoe’s series of HyOctane™ catalysts are specifically developed for all steps in FCC gasoline post-treatment applications. Their optimized activity and selectivity enable removal of sulfur to ultra-low levels while retaining high octane numbers, allowing a stable, flexible and profitable production of high quality gasoline.
Catalysts
Catalysts
The performance catalysts we supply for this application are listed below.
CatalystsTK-703 HyOctane™
TK-703 HyOctane™ is the specially developed catalyst for selective hydrogenation units in FCC naphtha post-treatment. The catalyst has low HDS, HDN, and hydrogenation activity. Therefore, this catalyst is excellent as a catalyst for the first reactor in FCC naphtha post-treatment units where...- Catalysts
TK-710 HyOctane™
TK-710 HyOctane™ is a CoMo type catalyst with moderate hydrodesulfurization (HDS) activity, limited loss of octane, high hydrodemetallization (HDM) activity and metal storage capacity. It is applied in fluid catalytic cracking (FCC) gasoline post-treatment and various grading applications. - Catalysts
TK-747 HyOctane™

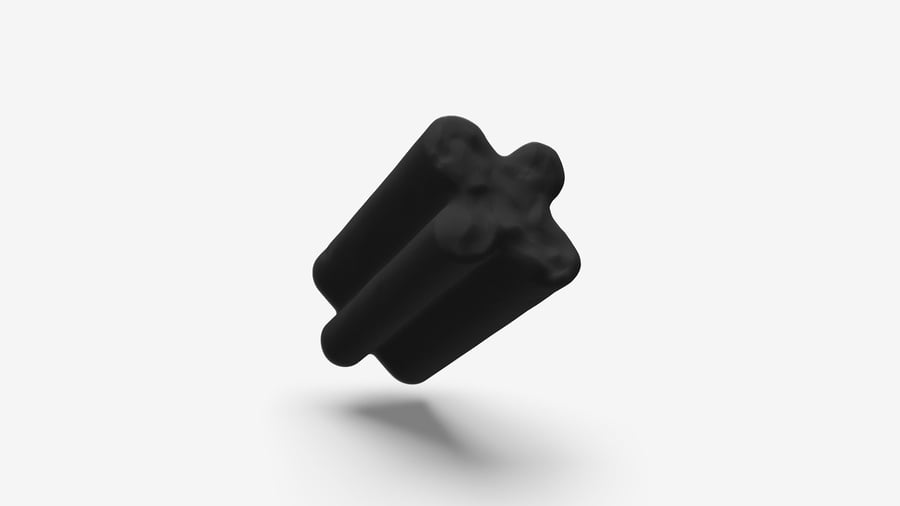

TK-747 HyOctane™ is a catalyst with a high nickel content specifically developed for Fluid Catalytic Cracking (FCC) gasoline post-treating that ensures minimum octane loss and reduces mercaptans in the product. The product is available in a quadralobe shape. Application FCC gasoline post-...
Equipment
Equipment
The proprietary equipment we supply for this application are listed below. Also see our reactor internals overview for more.
- Equipment
Catalyst Support
Our Catalyst Support is designed to support the combined weight of the catalyst, support material and oil. - Equipment
Distributor Tray
Our Vapor Lift Distributor Tray (VLT) ensures uniform distribution of liquid and gas over the entire cross section area of the catalyst bed. - Equipment
Inlet Diffuser
Our Inlet Diffusers are optimized and customized for every unit, taking into account all your reactor flow parameters and reactor geometry. - Equipment
Outlet Collector
Our Outlet Collector ensures even flow distribution in the bottom bed to maximize catalyst utilization and prevents bed migration to downstream piping and equipment. - Equipment
Quench Mixer
Our Quench Mixer ensures efficient mixing of catalyst bed effluents from both above and from the cold quench stream. - Equipment
Redistribution Tray
Our Redistribution Tray ensures uniform redistribution of the mixer effluents to the catalyst bed below. - Equipment
Scale Catcher
Our Scale Catching technology is a proven and economically feasible solution to delay pressure drop development and significantly increase unit utilization.
Services
Services
The services we supply for this application are listed below.
- Services
Catalyst Loading
All plants – even those with lots of turnaround experience – can run into trouble during loading. When a problem occurs, it can lead to longer turnarounds and, in the worst case, result in an underperforming catalyst. That makes proper loading an important step in profitable plant operation. Topsoe... - Services
General Technical Service
Optimal interaction between catalyst and technology is crucial if your plant is to perform at its best. Topsoe’s General Technical Service employs the full weight of our knowledge and experience to advise, inform and guide you towards improvement. All General Technical Service is provided as in-... - Services
Plant Assessment / Optimization
Refineries and chemical plants are complex and vulnerable to changes over time. These changes can degrade performance and impact negatively on day-to-day operations and, ultimately, your bottom line. Whether you choose a catalyst performance evaluation or full-scale process and catalyst... - Services
Sampling & Analysis
As a general rule, the more you know about a plant or unit’s operating conditions, the better you’ll be able to keep performance, cost-efficiency and profits high. Our Sampling & Analysis service is your direct route to the detailed insight it takes to make better decisions. During start-ups... - Services
Start-up & Reduction / Activation
Starting up your plant or unit is a complicated and time-consuming procedure that involves monitoring numerous parameters and ensuring the right start-up sequencing. If not performed correctly, it can result in delays or even damage to your catalysts, unit or plant. Our Start-up & Reduction/... - Services
Troubleshooting
Catalysts and processes normally operate smoothly, yet suboptimal performance can occur from time to time. Since most issues have multiple root causes – usually originating in external factors – the process of solving an issue can be difficult and complex. Our Troubleshooting service draws on the...
