An efficient and reliable conversion of the feedstock has a huge impact on the economics of the plant. Our different reforming technologies are tailor made to meet the requirements of the customer without compromising on reliability. For chemicals application, we propose the radiant wall reformer which may also include the reforming of CO2. For large size syngas units, units producing syngas for fuels, we propose the two-step reforming lay-out or the standalone ATR. These reforming technologies together with high active reforming catalysts will provide customer with proven and highest possible energy efficient solutions.
Catalysts
Catalysts
The performance catalysts we supply for this application are listed below.
CatalystsAR-401
Pre-reduced pre-reforming catalyst suitable for feedstocks ranging from natural gas to naphtha.- Catalysts
R-87R HEAT-X™
Pre-reduced high activity reforming catalyst for heat exchange applications. - Catalysts
RA-67-7H
Reforming catalyst promoted for low ammonia formation used for tubular reforming. - Catalysts
RK-201
Low alkali promoted reforming catalyst used for tubular reforming of feedstocks ranging from natural gas to naphtha. - Catalysts
RK-202
High alkali promoted reforming catalyst used for tubular reforming of naphtha feedstocks. - Catalysts
RK-211
Pre-reduced low alkali promoted reforming catalyst used for tubular reforming of feedstocks ranging from natural gas to naphtha. - Catalysts
RK-212
Pre-reduced high alkali promoted reforming catalyst used for tubular reforming of naphtha feedstocks. - Catalysts
RK-400
Latest generation low alkali promoted reforming catalyst used for feedstocks ranging from natural gas to LPG. - Catalysts
RK-400R
Latest generation pre-reduced low alkali promoted reforming catalyst used for feedstocks ranging from natural gas to LPG. - Catalysts
RK-500 TITAN™

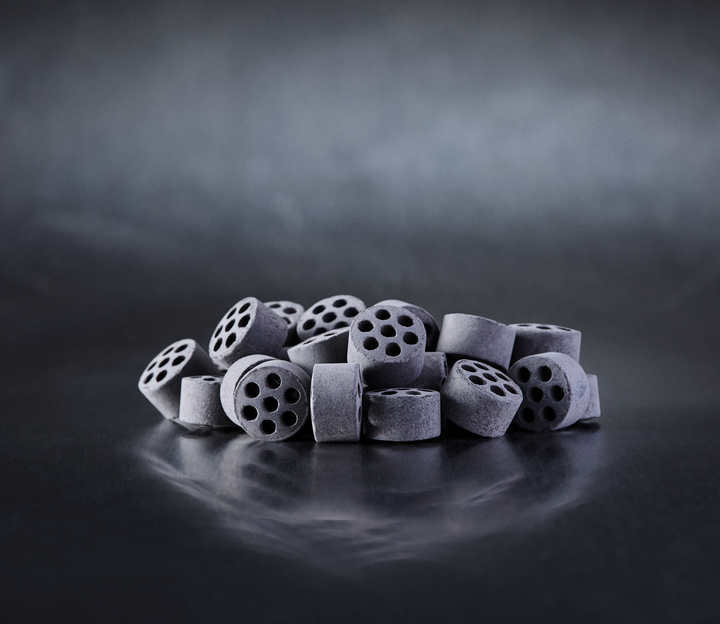

Tubular reforming catalyst With the RK-500 TITAN™ catalyst we have combined the superior carbon resistance of our conventional alkali catalysts with the unmatched stability of the low pressure drop RC-67 TITAN™. The catalyst is produced in the seven-hole cylindrical shape which yields both a very... - Catalysts
RKA-10
Noble metal-promoted top layer catalyst for oxygen-fired secondary and autothermal reforming. - Catalysts
RKC-2-7H
Secondary reforming catalyst RKC-2-7H is a nickel based reforming catalyst for secondary reforming. Application RKC-2-7H is used in the main bed of secondary air-blown reformers. Main bed The RKC-2-7H catalyst has high activity and the shape and size gives low start-of-run pressure drop.
Equipment
Equipment
The proprietary equipment we supply for this application are listed below.
- Equipment
Adiabatic Reactor Bottom Support Grid
Increase your profitability with Topsoe’s support grid to obtain a lower pressure drop in your adiabatic reactors such as the high, medium, low-temperature shift or the methanator. Achieve a pressure drop which is up to 50% lower. Worldwide, more than 20 reactors already have this technology... - Equipment
Air-fired Secondary Reformer
The air-fired secondary reformer is essential in natural gas-based ammonia plants as it is the simplest way of introducing the nitrogen required for ammonia synthesis. Unlike the upstream tubular primary reformer, the secondary reformer is adiabatic, and the operating conditions are more severe... - Equipment
Catalyst bed support structure
The catalyst bed support in the SynCOR™ unit serves both as structural support for the catalyst bed and as an outlet flow distributor guiding the syngas from the catalyst bed into the transfer line to the waste heat recovery system downstream the reformer. - Equipment
Convection Reformer HTCR

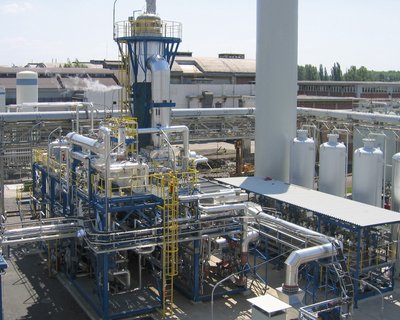

Haldor Topsoe Convection Reformer™ (HTCR) technology is a compact, high-efficiency heat exchange reformer that provides refinery operators with a straightforward, inexpensive way to meet the growing demand for hydrogen. - Equipment
Heat Exchange Reformer (HTER)
The introduction of gas heated reforming for synthesis gas production will enable you to effectively utilize the valuable heat in the reformer effluent to create more reforming capacity. The Topsoe HTER can be used in combination with an autothermal reformer (ATR), with a tubular reformer (SMR), or... - Equipment
HTZR™ target tiles
Topsoe’s SynCOR™ unit incorporates a floor of zirconium-based ceramic target tiles, HTZR™, as an integral part of the reactor design. The purpose of the HTZR™ target tiles is to: Act as the partition between the combustion chamber and the catalyst bed Protect the catalyst from any direct impact... - Equipment
Oxygen-fired Secondary Reformer
In large-scale methanol plants, each added day of operation is worth as much as a million euros. Plant reliability and availability are of utmost importance. Meeting these needs requires continuous equipment development and process optimization. One of the important pieces of equipment used in the... - Equipment
Reactor refractory lining
The SynCOR™ pressure shell is manufactured from low-alloy steel. It is protected against the extremely harsh operating conditions in the combustion chamber by an internal lining of a multi-layer refractory. The lining is exposed to extremely high temperature and radiation intensity from the... - Equipment

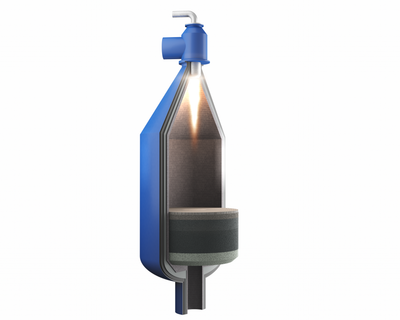

SynCOR™ - Autothermal Reformer (ATR)
Autothermal reforming at low steam-to-carbon ratio The majority of the world’s syngas-producing plants apply steam methane reforming, with the specific type of reforming technology depending on application and operating conditions. Topsoe offers several types of reforming technologies and has... - Equipment
SynCOR™ CTS™ burner
The CTS™ (Cool Tip Swirl) burner is a crucial piece of equipment, and its importance in reformer reliability and availability cannot be underestimated. Good burner performance is characterized by: Short and centralized flame Low metal temperatures on burner nozzles Soot-free operation Easy... - Equipment
Topsoe Bayonet Reformer (TBR)
The Topsoe Bayonet Reformer TBR combines the novel properties of convection and radiant heat transfer in one steam reformer. The development and introduction of the TBR is a result of Topsoe’s continuous striving towards more energy efficient ways of producing hydrogen by steam reforming of... - Equipment
Tubular radiant wall steam reformer
The radiant wall steam reformer consists of a number of catalyst tubes in a single line in one or two fired boxes with burners placed at the walls at several elevations. The burner flames are directed backwards against the furnace wall, eliminating any risk of flame impingement of the catalyst... - Equipment
Waste Heat Boiler (Syngas)
The process gas waste heat boiler (WHB) is a critical piece of equipment cooling the hot synthesis gas exiting an ATR, a secondary reformer, or an SMR. The heat from the process gas is utilized to generate high pressure and high-quality steam for the process and to drive turbines. Depending on the...
